JT1402 Air Velocity Sensor/wind speed sensor
description1
description2
Product introduction

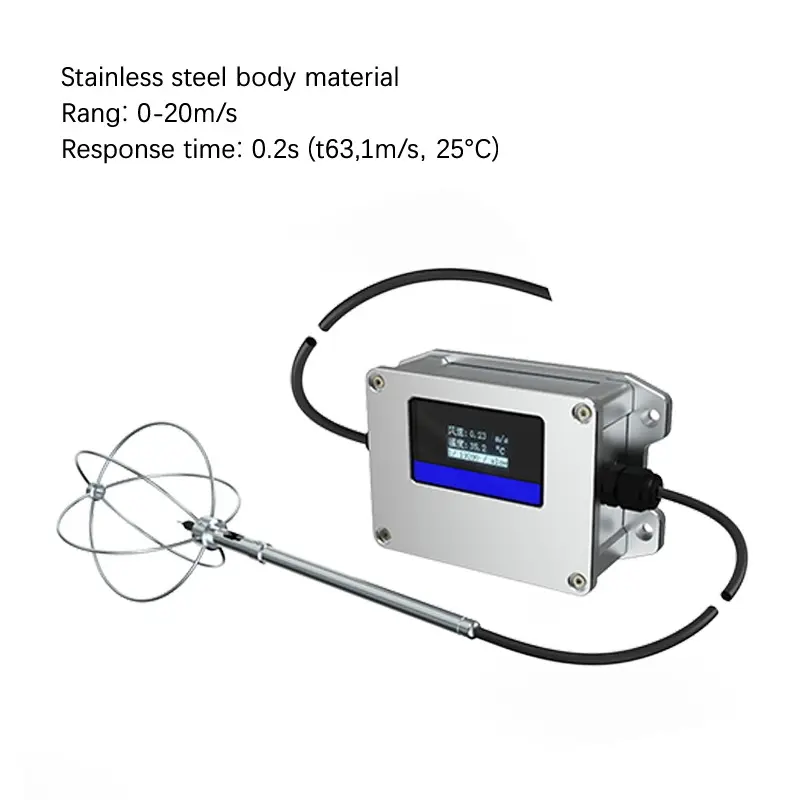

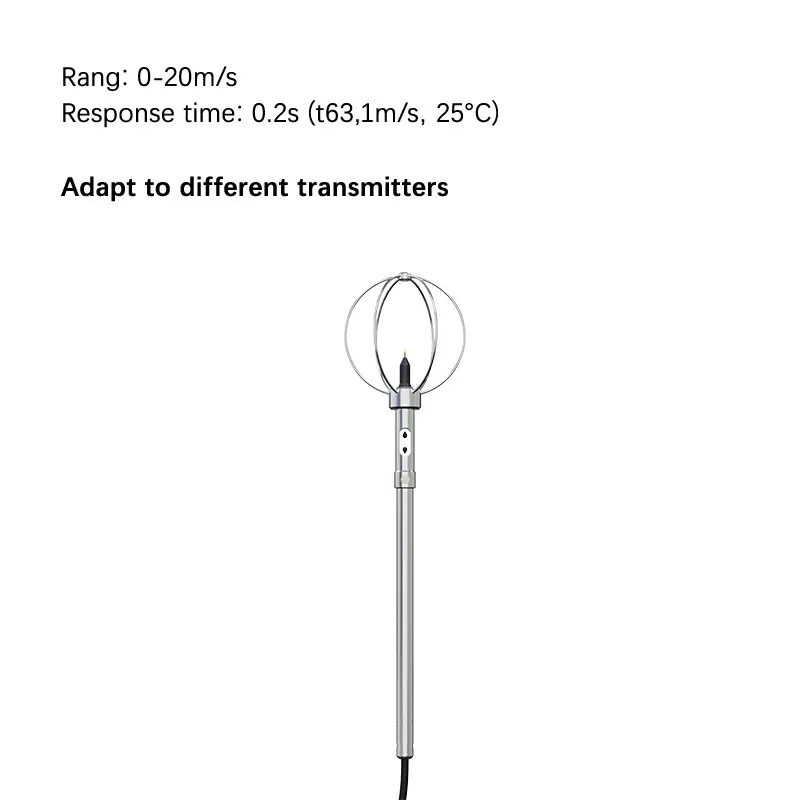

JT1402 omnidirectional wind speed sensor (probe, without transmitter)
JT1402 has various standard signal outputs such as RS485, 4-20mA, 0-10V, etc. The sensor adopts a split structure design, the sensor part is a rod-shaped structure with a ball cage type protective cover, and is connected to the processing circuit through an extension lead.

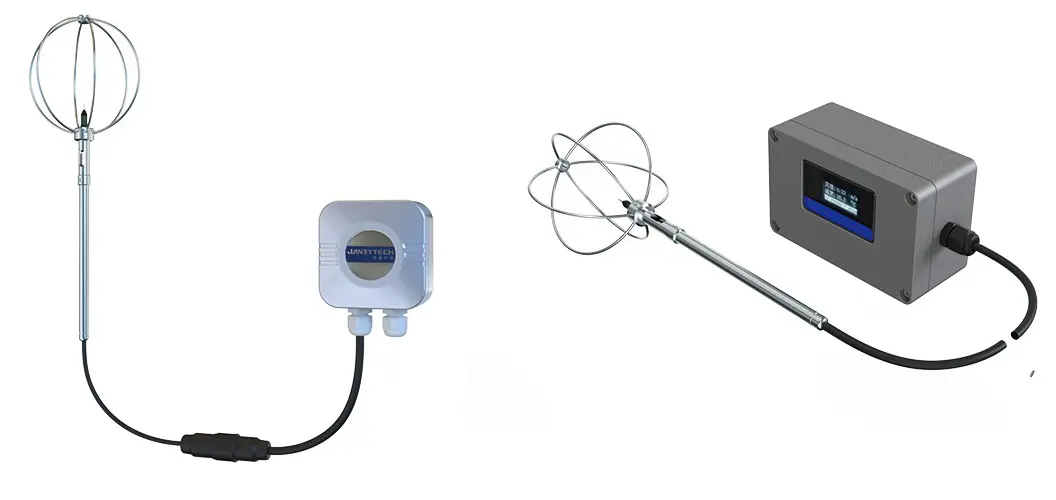

The casing is designed with high protection level, and there are two specifications with display and without display. The installation forms include guide rail installation and wall installation, which are suitable for long-term on-line wind speed test places.
Split design: convenient for probe arrangement.
Omnidirectional test: 360° has good consistency.
High response: Response speed up to 0.2s (t63).
High precision: Can pass the test of the national metrology institution.
Standard output: Standard Modbus RS485, 4-20mA, 0-10V output.
Field of application:
Dynamics with small temperature changes and large wind speed fluctuations Wind field, especially for places with high requirements for wind speed response speed.
On-line monitoring and control of building ventilation environment, air velocity control in workshops and production lines, and air velocity control in clean rooms.

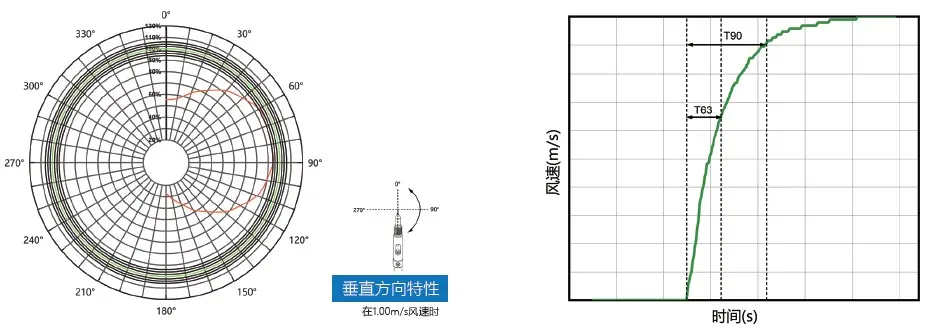

Omnidirectional test, no directional constraints: stable directional response, high response speed.
Quick Response
JT1402 has a very high response speed, and can detect weakly changing airflow, which makes the wind speed sensor suitable for precision machining Production line wind speed measurement, wind tunnel calibration, tobacco processing, tea processing and storage, aerospace, agriculture and other airflow research and control fields.

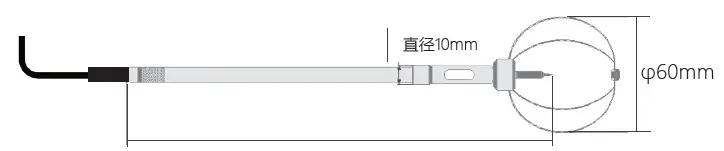

Wind speed probe size
JT1402 is one of the most widely used wind speed sensors, with excellent performance in measurement accuracy and wind speed responsiveness.
Specifications Size

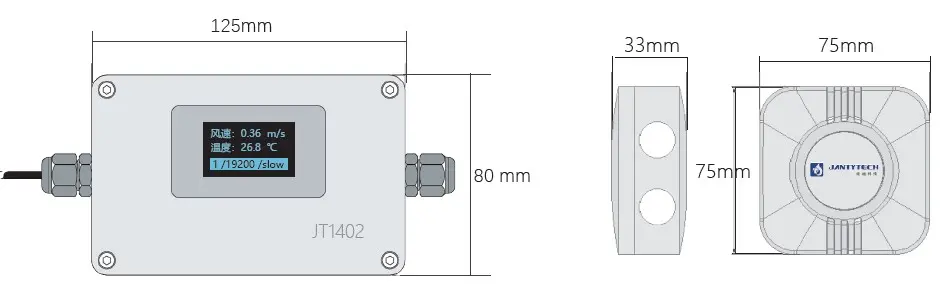

Compact and sturdy shell
The shell of the host with a display is made of all metal, with high-level protection, and can adapt to long-term work in harsh environments. The host without a display is a waterproof and dustproof resin shell, which is smaller in size Easier to arrange.
Parameter name |
Technical indicators |
illustrate |
structure type |
Split structure, omnidirectional test |
|
Wind speed range |
0-20m/s (0-30m/s can be customized) |
|
Wind Speed Accuracy |
0.05-2.0m/s ±(0.05 m/s+2% of reading) >2.0 ±(0.1 m/s±2% of reading) |
|
Wind speed resolution |
0.01m/s |
|
Response time |
0.2s |
(t63, 1m/s wind speed, 25°C) |
Adaptive Test Module |
Optional JT6070, JT6071 |
|
supply voltage |
Refer to the selected test module |
|
Wind temperature range |
-25-70°C |
|
Wind temperature accuracy |
±1°C（＜1m/s）； ±0.5°C（＞1m/s） |
|
Wind temperature resolution |
0.1°C |
|
use environment |
Probe -20—60°C; 0—90%RH |
non-condensing state |
Temperature compensation |
-25—80°C |
|
Interface form |
bare wire connector |
|
Structural material |
Stainless steel |
|
degree of protection |
IP54 |
|
storage temperature |
-30—80°C |
|
Test Module/Transmitter Specifications | ||
Model |
JT6070 |
JT6071 |
product picture |
|
|
output |
RS485 (optional 0-10V; 4-20mA) |
|
show |
none |
OLED display |
supply voltage |
DC9V-36V |
|
Rated power consumption |
＜0.8W |
＜1W |
use environment |
-25—70°C；0—100%RH |
|
Interface form |
bare wire connector |
|
material |
ABS |
aluminum alloy |
degree of protection |
IP65 |
|
storage temperature |
-30—80°C |
|
